Micro Driven Ultrasonic Piezo Transducer BTU Meter Ultrasonic Flow Sensor

Micro Driven Ultrasonic Piezo Transducer BTU Meter Ultrasonic Flow Sensor
Micro Driven Ultrasonic Piezo Transducer BTU Meter Ultrasonic Flow Sensor Micro Driven Ultrasonic Piezo Transducer BTU Meter Ultrasonic Flow Sensor Micro Driven Ultrasonic Piezo Transducer BTU Meter Ultrasonic Flow Sensor
Informations de base
Lieu d'origine: La Chine
Nom de marque: Runpaq
Certification: CE
Numéro de modèle: 17B8
Quantité de commande min: 1000 morceaux
Détails d'emballage: mousse + boîte
Délai de livraison: 10-15 jours
Conditions de paiement: T/T, L/C, Western Union, D/P
Capacité d'approvisionnement: 100 000/mois
meilleur prix Contactez
Descriptio: transducteur piézo-électrique ultrasonique Fréquence centrale: 975 +/- 30 HERTZ
Capacité statique: 500PF +/- 20% Impédance de résonance: < 100="">
Transmettez l'angle de faisceau: 5 - 10 degrés Recevez la sensibilité: >120 système mv (mi-onde)
Émettez la surface: Diamètre 15 millimètres Surface de montage: Diamètre 21 millimètres
Pression: > 3,0 MPA câblage: centre
Câblage du type: fil de bouclier Matériel de Hous: SS304+polymer
Surligner:

Epoxy Encapsulation Ultrasonic Piezo Transducer

,

BTU Meter Ultrasonic Flow Sensor

,

Dia 21mm Ultrasonic Flow Sensor

ultrasonic flow sensor, ultrasonic piezo transducer for bTU meter



Applications of ultrasonic transducer:

The ultrasonic flow sensor measures liquid flow rate by transmitting ultrasonic wave in the liquid medium. In addition to flow metering, it can also be used for liquid level measurement. These are mainly used in measuring applications, such as detection, B-medical, beauty equipment, acoustic transducer, micro driven, ultrasonic heat meter, water meter, welder, cleaner, ultrasonic flowmeter, etc.



Working principle of ultrasonic transducer:

The piezoelectric ultrasonic transducers are used in an ultrasonic flow meter, it uses sound waves to determine the velocity of a fluid flowing through a closed pipe, and its reflections from the fluid are the same. The transmitter processes upstream and downstream times to determine the flow rate.



What is it made of: ultrasonic sensor:

The ultrasonic transducer of high frequency, which is made up of an active element, a backing, and wearplate. Its active element is a piezoelectric or single crystal material which converts electrical energy to ultrasonic energy. It will also then receives back ultrasonic energy and converts it to electrical energy.



Product data sheet

Technical parameters
Model 17B Center frequency 975 + 30 KHz Static capacity 500 PF + 20%
Resonance impedance <110 Ω Protection IP68 Work temp. < 90 ℃
Pressure >3.0 Mpa Transmit beam angle 5 – 10

Receive

sensitivity

>300 mv

(half wave)
Housing material SS304+polymer Emit surface Dia. 17 mm Mounting surface Dia. 21 mm
Seal

Epoxy

encapsulation

 Wiring Center Wire type

Dia. 2.5 mm

dual core



Item 17SLW Unit Standard V Item Unit Standard V
Center F(Fr) KHz 970±30 Emit beam A . 5-10
Resonant(R0) Ω <110Ω Protection   IP65
Static C(CP) pF 900±20% Pressure MPa ﹥2.6
Receive sensitivity mv >280mv(half) Wire lead way mm Center of sensor
Range mm   Seal   Epoxy fill
Temperature ℃ <70° Hole dia. mm Φ21
Voltage V 3 House material   High molecular
NTC 3950 10K 1%



Parameters

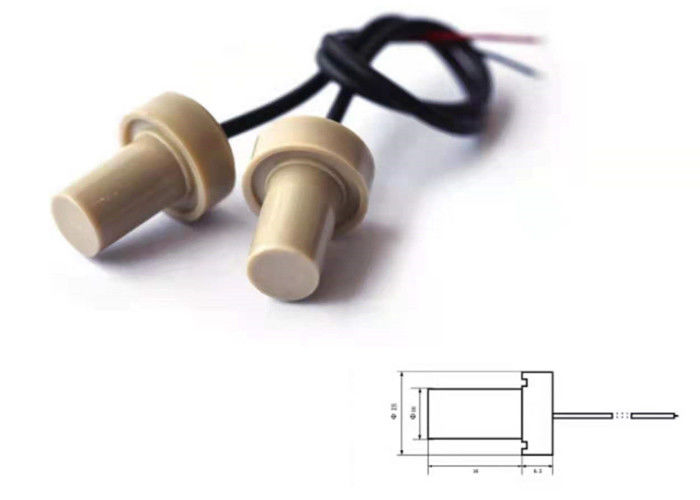

Micro Driven Ultrasonic Piezo Transducer BTU Meter Ultrasonic Flow Sensor 0



Different options:

Micro Driven Ultrasonic Piezo Transducer BTU Meter Ultrasonic Flow Sensor 1

Produit Tag:

Transducteur en céramique piézo-électrique de la protection IP68,

Le diamètre 15mm émettent le transducteur en céramique piézo-électrique,

Transducteur en céramique piézo-électrique ultrasonique
